What This Helps With

Automate the process of uploading custom metadata from a folder containing images and their metadata files to Visual Layer datasets, with automatic field discovery and type detection.

This page provides an example Python script that demonstrates how to automate custom metadata uploads to Visual Layer. The script scans a folder for images and their corresponding metadata files, automatically discovers all fields, and handles the complete upload workflow.

This is a specific use case example script. You can modify the field detection logic and processing to suit your particular needs. For advanced scenarios, custom metadata deletion, or additional support, contact Visual Layer for assistance.

Working with DICOM Medical Imaging Data?

For medical imaging workflows, check out our specialized DICOM converter and upload scripts that handle DICOM-specific field types, date/time formats, and medical metadata standards.

View Complete Script Code

Access the full custom metadata upload Python script with complete implementation, ready to copy and use.

How the Script Works

The automation script demonstrates the complete Visual Layer custom metadata API workflow:

Automatically exports dataset - Calls Visual Layer API to get filename-to-media_id mapping (no manual export needed!)
Scans folder for metadata - Finds images and their corresponding .metadata.json files
Discovers all fields - Auto-detects all metadata fields across your files (or uses manual specification)
Analyzes field types - Intelligently detects data types (float, datetime, enum, multi-enum, link, string)
Creates custom metadata fields - Creates fields in Visual Layer via API calls
Uploads metadata values - Uploads values for each field using the proper JSON format
Monitors upload progress - Waits for completion and reports status

Field Type Detection Logic

The script uses intelligent heuristics to detect field types in auto-discovery mode:

Field Type	Detection Criteria	Examples
float	Contains decimal point or scientific notation	`23.5`, `1.2e-3`, `0.95`
datetime	Parseable by pandas as date/time	`2024-01-15`, `2024-01-15T10:30:00Z`
link	Starts with http://, https://, or ftp://	`https://example.com`, `ftp://server.com`
multi-enum	Array with ≤20 unique values across all files	`["tag1", "tag2"]`
enum	≤100 unique string values across all files	`"approved"`, `"pending"`, `"rejected"`
string	Default for everything else	Any text, nested objects (JSON-serialized)

The script samples up to 100 values per field for accurate enum detection. If a field has more than 100 unique values, it’s treated as a string type instead of enum.

Key Features

Automatic Dataset Export:

No manual export step required - the script automatically fetches the filename-to-media_id mapping

Auto-Discovery Mode:

Automatically finds and processes ALL metadata fields without configuration
Ideal when you want to upload everything

Manual Override:

Use --field flag to specify only certain fields
Useful when you want selective upload or need to force specific types

Intelligent Type Detection:

Auto-detects 6 field types (float, datetime, enum, multi-enum, link, string)

Robust Error Handling:

Falls back to string type if conversion fails
Automatically truncates strings to Visual Layer’s 255-character limit
Handles nested objects by serializing to JSON

Adding vs. Updating Metadata:

Adding new fields: In case custom metadata was already uploaded to a dataset, the script will add new fields.
Updating existing fields: Currently updating existing metadata is not supported. Contact Visual Layer for assistance with updating existing metadata values

Prerequisites

Before using the script, ensure you have:

Visual Layer on-premises installation (script designed for no-authentication environments)
Dataset in READY state in Visual Layer with images already uploaded
Python environment with required packages: pandas, requests
Folder structure with images and .metadata.json files

Expected Folder Structure

The script expects images with corresponding metadata files:

your-folder/
├── image1.jpg
├── image1.jpg.metadata.json
├── image2.png
├── image2.png.metadata.json
├── image3.jpg
└── image3.jpg.metadata.json

The .metadata.json file naming convention can be customized in the script’s scan_folder() function to match your specific metadata storage format and naming patterns.

Alternative: Single JSON File

If your metadata is in a single JSON file instead of individual files per image: Example JSON format:

{
  "image1.jpg": {
    "confidence": 0.95,
    "category": "approved"
  },
  "image2.jpg": {
    "confidence": 0.87,
    "category": "pending"
  }
}

To use this format: Add the load_single_json_metadata() method to the FolderMetadataProcessor class and call it instead of scan_folder() + load_metadata_files() in the workflow.

View Single JSON Implementation

See the complete code example for handling single JSON files at the bottom of the page.

Metadata File Format

Each .metadata.json file should contain field-value pairs:

{
  "annotated_at": "2024-01-15T10:30:00Z",
  "confidence": 0.95,
  "category": "approved",
  "reviewer": "john_doe",
  "tags": ["quality", "verified"],
  "notes": "High quality sample"
}

Supported Value Types:

Strings: "approved", "warehouse_a"
Numbers: 23.5, 0.95, 100
Dates/Times: "2024-01-15", "2024-01-15T10:30:00Z"
Arrays: ["tag1", "tag2"] (for multi-enum fields)
Objects: {"key": "value"} (serialized to JSON string)

Expected Result in Visual Layer

After running the script, your custom metadata fields will be visible in Visual Layer’s interface for each image:

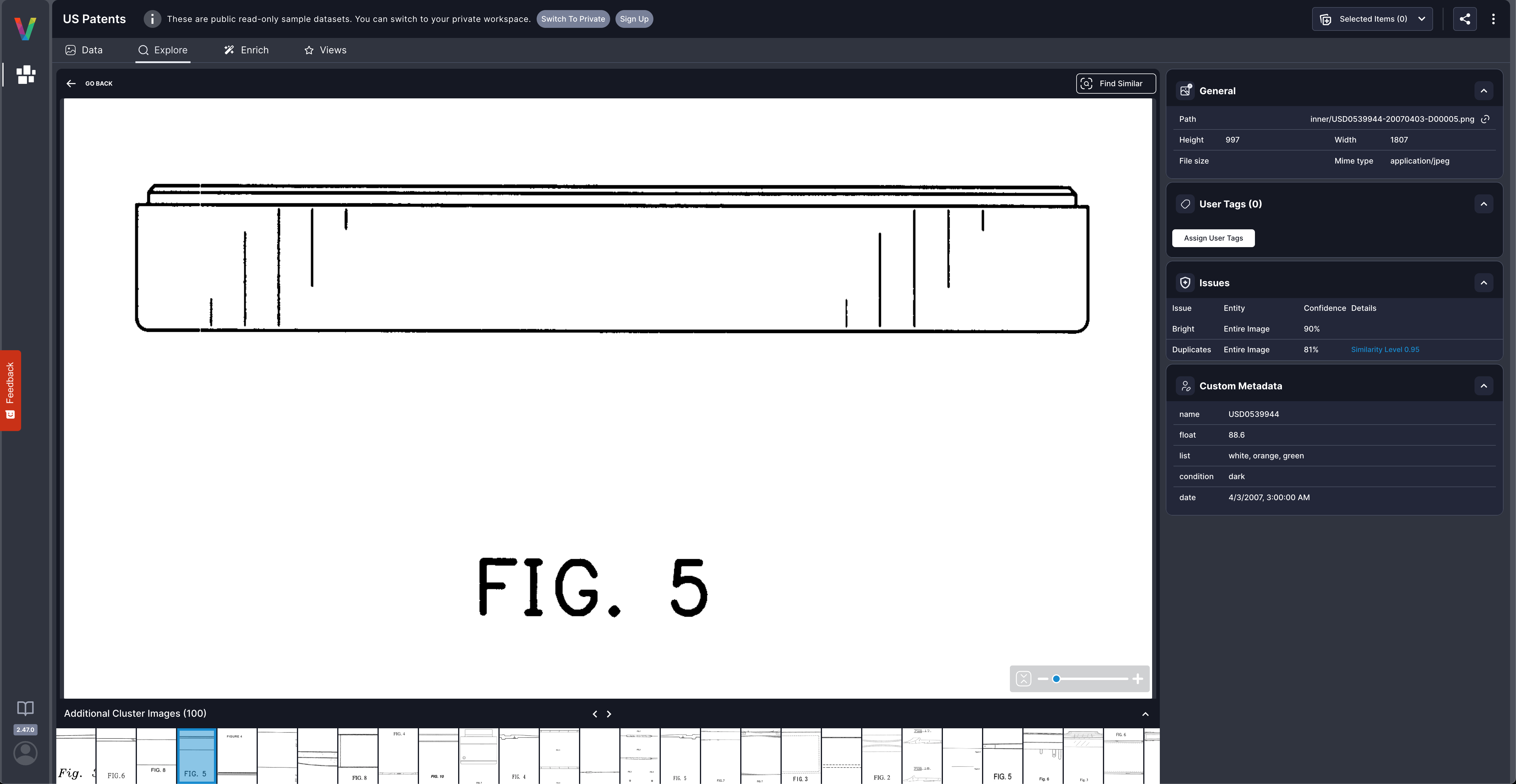

Custom metadata displayed in Visual Layer showing fields like name, float value, list of tags, condition, and date

These fields become searchable and filterable, enabling you to query and analyze your dataset based on your custom metadata.

Installation and Usage

Install Dependencies

pip install pandas requests

Basic Usage - Auto-Discovery Mode (Recommended)

The script automatically discovers and uploads ALL metadata fields:

python upload_metadata_from_folder.py \
  --folder /path/to/folder \
  --dataset-id your-dataset-id \
  --base-url http://localhost:2080

Manual Field Specification

Specify only certain fields with explicit types:

python upload_metadata_from_folder.py \
  --folder /path/to/folder \
  --dataset-id your-dataset-id \
  --base-url http://localhost:2080 \
  --field annotated_at datetime \
  --field confidence float \
  --field category enum \
  --field tags multi-enum

Command Line Parameters

Parameter	Required	Description	Default
`--folder`	✅	Path to folder containing images and .metadata.json files	-
`--dataset-id`	✅	Visual Layer dataset identifier	-
`--base-url`	⭕	Visual Layer installation URL	`http://localhost:2080`
`--field`	⭕	Specify field name and type (repeatable). If omitted, auto-discovers all fields. Types: `string	float	datetime	enum	multi-enum	link`	-

Example Commands

Auto-discover all fields (recommended):

python upload_metadata_from_folder.py \
  --folder ./annotated_images \
  --dataset-id abc123 \
  --base-url http://localhost:2080

Upload only specific fields:

python upload_metadata_from_folder.py \
  --folder ./data \
  --dataset-id my-dataset \
  --base-url http://visual-layer:3000 \
  --field quality_score float \
  --field status enum

Script Output

The script provides detailed progress information:

Auto-Discovery Mode Output

🚀 Starting Folder Metadata Upload Workflow
📁 Folder: /path/to/folder

📤 Exporting dataset to get media_id mappings...
   ✅ Exported 150 media items

🔍 Scanning folder: /path/to/folder
   ✅ Found 150 image + metadata pairs

📖 Loading metadata files...
   ✅ Loaded 150 metadata files

🤖 Auto-detection mode
🔍 Discovering and analyzing all fields...
   📋 Found 8 unique fields
      annotated_at: datetime
      confidence: float
      category: enum
      reviewer: string
      tags: multi-enum
      priority: enum
      notes: string
      source_url: link
   ✅ Analyzed 8 fields

🎯 Processing 8 custom fields...

🔄 Processing field: annotated_at (datetime)
🔧 Creating custom field: annotated_at (datetime)
   ✅ Created field with task ID: task-123
   📤 Uploading data for field: annotated_at
   📊 Processed 150 files, skipped 0
   ✅ Upload completed successfully
   ⏳ Waiting for task completion... (Press Ctrl+C to stop)
   ✅ Task completed successfully, 150 rows inserted
   ✅ Task completed after 3s
   ✅ Field annotated_at completed

🔄 Processing field: confidence (float)
...

🎉 Workflow completed!
✅ Successfully processed 8/8 fields

Manual Mode Output

🚀 Starting Folder Metadata Upload Workflow
📁 Folder: /path/to/folder

📤 Exporting dataset to get media_id mappings...
   ✅ Exported 150 media items

🔍 Scanning folder: /path/to/folder
   ✅ Found 150 image + metadata pairs

📖 Loading metadata files...
   ✅ Loaded 150 metadata files

🎯 User-specified fields: 2
🔍 Validating user-specified fields...
   Checking field: quality_score (float)
      ✅ Valid
   Checking field: status (enum)
      ✅ Valid
   ✅ Validated 2/2 fields

🎯 Processing 2 custom fields...
...

Customizing the Script

The script is designed to be modified for your specific use case. Here are common customizations:

Modifying Field Detection

You can customize how the script detects field types by modifying the _auto_detect_field_type() function:

def _auto_detect_field_type(self, field_name: str, sample_values: List[Any]) -> str:
    # Force specific fields to certain types
    if field_name in ['product_id', 'batch_number']:
        return 'string'  # Never treat as enum

    if field_name.endswith('_url'):
        return 'link'  # Force URL fields

    # Adjust enum threshold
    if len(unique_values) <= 50:  # Changed from 100
        return 'enum'

    # ... rest of detection logic

Skipping Certain Fields

Modify the discover_and_analyze_fields() function to skip fields:

def discover_and_analyze_fields(self, metadata_by_file):
    # Skip internal fields
    skip_fields = {'_internal_id', '_batch_number', 'temp_field'}

    for field_name in sorted(all_fields):
        if field_name in skip_fields:
            continue
        # ... rest of logic

Custom Value Conversion

Modify the _convert_value() function for custom data transformations:

def _convert_value(self, value: Any, field_name: str, field_type: str) -> Any:
    # Custom preprocessing
    if field_name == 'temperature':
        # Convert Fahrenheit to Celsius
        return (float(value) - 32) * 5/9

    if field_name.startswith('date_'):
        # Custom date format handling
        return custom_date_parser(value)

    # ... rest of conversion logic

Troubleshooting

Common Issues

No image + metadata pairs found:

Verify your folder contains images with corresponding .metadata.json files
Check filename format: image.jpg should have image.jpg.metadata.json
Ensure proper file permissions

Export dataset failed:

Confirm your Visual Layer instance is accessible at the specified URL
Check that the dataset ID is correct and the dataset is in READY state
Verify the /api/v1/dataset/{dataset_id}/export_media_id endpoint is accessible

Field validation failed:

Check that specified field names exist in your metadata files
Verify field types match your data (e.g., datetime fields have valid dates)
Review enum fields don’t exceed 20 unique values (API limit)

Upload timeouts:

Large datasets may take time to process
The script polls indefinitely - you can interrupt with Ctrl+C if needed
Check Visual Layer logs for any processing errors

Type conversion errors:

Review the automatic field type detection results
Use manual mode (--field) to specify correct types
Modify the _convert_value() function for custom data formats

String truncation warnings:

Visual Layer has a 255-character limit for string fields
The script automatically truncates - check if this affects your data
Consider using link type for long URLs

Getting Help

For advanced use cases, custom metadata deletion, or technical support:

Contact Visual Layer Support

Reach out to Visual Layer’s support team for assistance with complex metadata workflows, custom field requirements, or troubleshooting upload issues.

Advantages Over Manual Upload

Automatic Export:

❌ Manual: Export dataset → download metadata.json → run script
✅ Automatic: Just run script - it exports automatically

Field Discovery:

❌ Manual: List all fields and types in configuration
✅ Auto-discovery: Script finds all fields automatically

Type Detection:

❌ Manual: Guess field types or trial-and-error
✅ Intelligent: Script detects types from actual data

Error Handling:

❌ Manual: Script fails on type conversion errors
✅ Robust: Falls back to string, truncates long values

Flexibility:

✅ Both modes: Auto-discovery for convenience, manual for control

Custom Metadata API Guide - Manual API workflow and field type details
DICOM Converter - Specialized workflow for medical imaging metadata
Creating Datasets - Guide to creating Visual Layer datasets

Getting started

On-premises

Integrations

Creating datasets

Curating datasets

Managing datasets

Exploring datasets

Dataset enrichment

Custom Metadata Upload Script

What This Helps With

Working with DICOM Medical Imaging Data?

View Complete Script Code

How the Script Works

Field Type Detection Logic

Key Features

Prerequisites

Expected Folder Structure

Alternative: Single JSON File

View Single JSON Implementation

Metadata File Format

Expected Result in Visual Layer

Installation and Usage

Install Dependencies

Basic Usage - Auto-Discovery Mode (Recommended)

Manual Field Specification

Command Line Parameters

Example Commands

Script Output

Auto-Discovery Mode Output

Manual Mode Output

Customizing the Script

Modifying Field Detection

Skipping Certain Fields

Custom Value Conversion

Troubleshooting

Common Issues

Getting Help

Contact Visual Layer Support

Advantages Over Manual Upload

Getting started

On-premises

Integrations

Creating datasets

Curating datasets

Managing datasets

Exploring datasets

Dataset enrichment

What This Helps With

Working with DICOM Medical Imaging Data?

View Complete Script Code

​How the Script Works

​Field Type Detection Logic

​Key Features

​Prerequisites

​Expected Folder Structure

​Alternative: Single JSON File

View Single JSON Implementation

​Metadata File Format

​Expected Result in Visual Layer

​Installation and Usage

​Install Dependencies

​Basic Usage - Auto-Discovery Mode (Recommended)

​Manual Field Specification

​Command Line Parameters

​Example Commands

​Script Output

​Auto-Discovery Mode Output

​Manual Mode Output

​Customizing the Script

​Modifying Field Detection

​Skipping Certain Fields

​Custom Value Conversion

​Troubleshooting

​Common Issues

​Getting Help

Contact Visual Layer Support

​Advantages Over Manual Upload

​Related Resources

How the Script Works

Field Type Detection Logic

Key Features

Prerequisites

Expected Folder Structure

Alternative: Single JSON File

Metadata File Format

Expected Result in Visual Layer

Installation and Usage

Install Dependencies

Basic Usage - Auto-Discovery Mode (Recommended)

Manual Field Specification

Command Line Parameters

Example Commands

Script Output

Auto-Discovery Mode Output

Manual Mode Output

Customizing the Script

Modifying Field Detection

Skipping Certain Fields

Custom Value Conversion

Troubleshooting

Common Issues

Getting Help

Advantages Over Manual Upload

Related Resources
